Kahles 3.5-28x50i DLR



SKU: N/A Category:


Shannon Kay from K&M Precision Rifle Training is proud to partner with Kahles Optics by designing the SKMR reticles. The SKMR reticles were designed to be uncomplicated, practical and visually expedient for both tactical operations and the most demanding long range competitors. With over 18 years of operational experience and with input from across the industry, Shannon designed the SKMR reticles to immediately fill a void in the market place. Backed by Kahles Optics long history and superior class quality, it is with little surprise that the scope/reticles have rapidly dominated the marketplace.

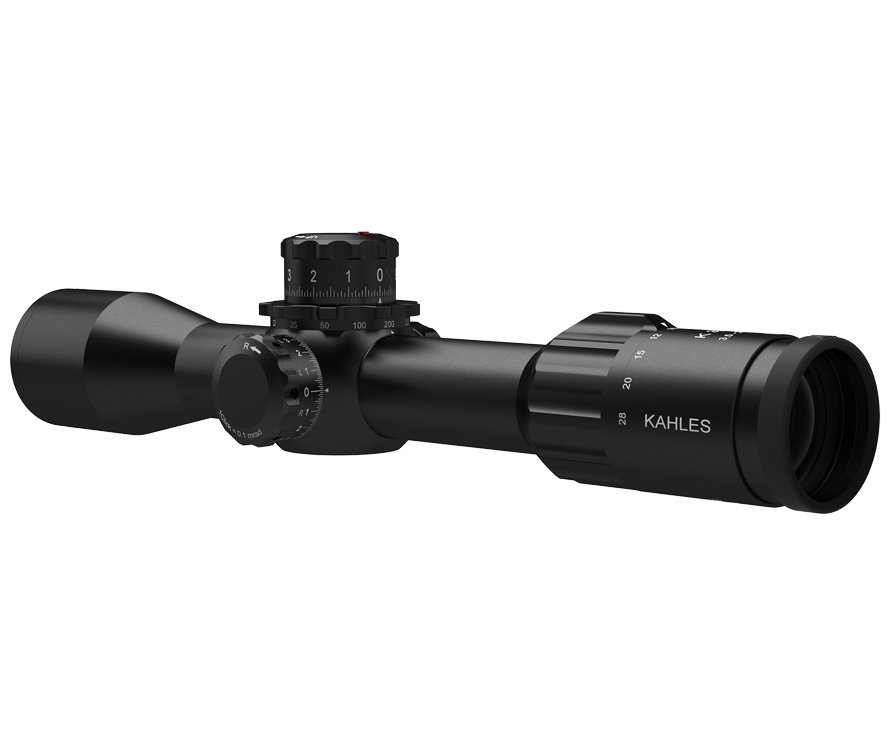

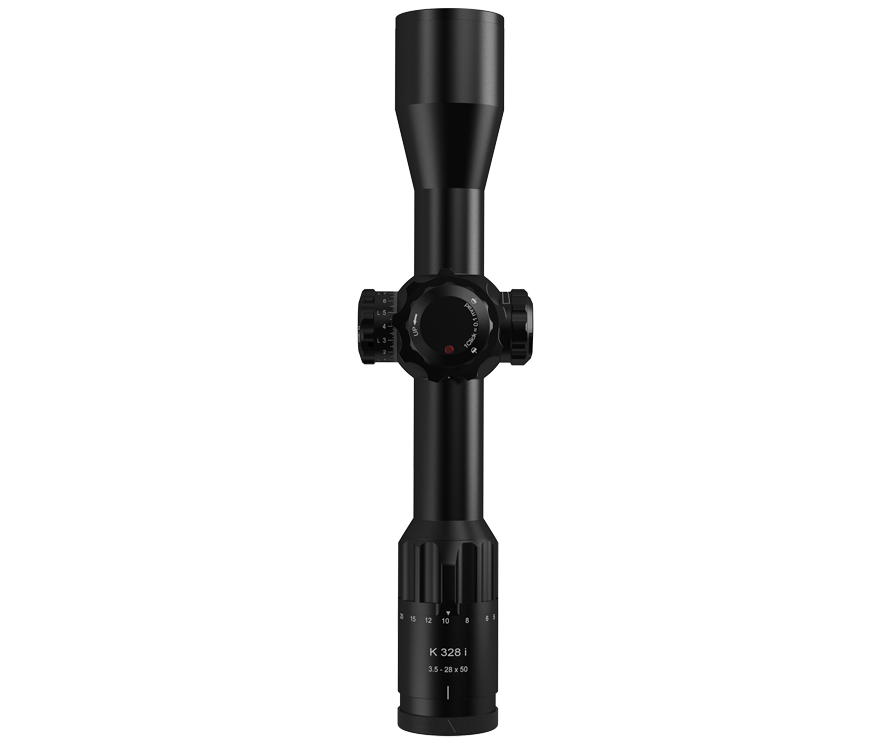

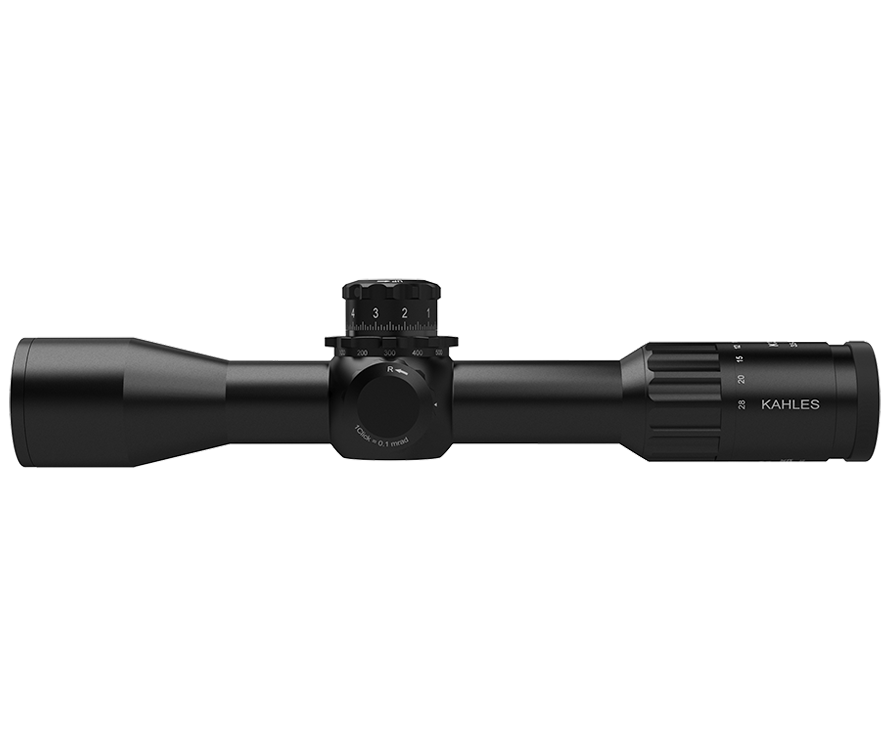

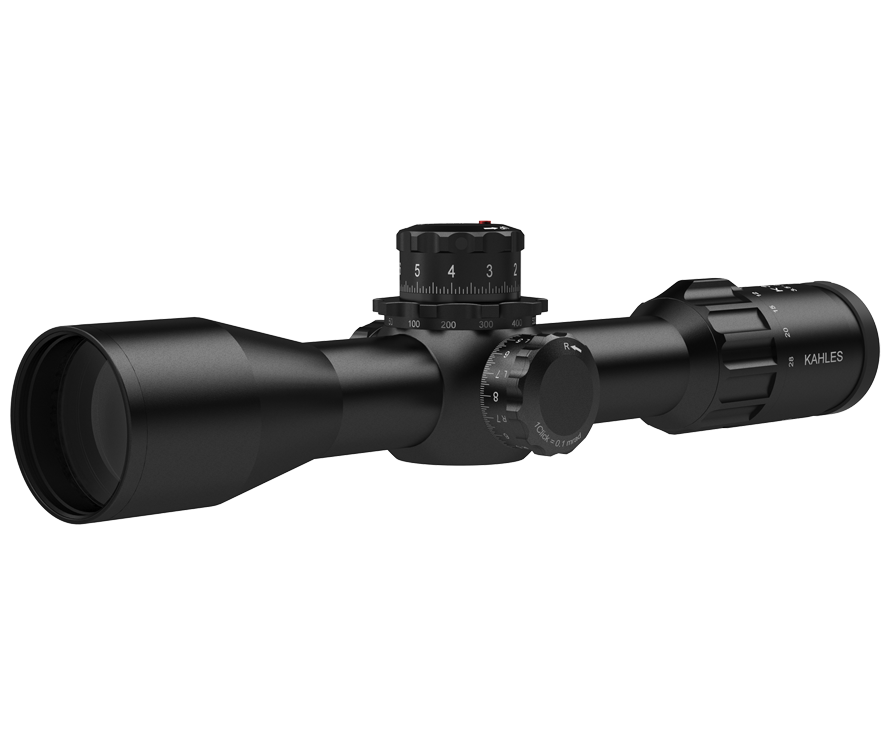

Introducing the Kahles K328i 3.5-28×50 DLR, setting new benchmarks in optical performance with its cutting-edge design. Experience a revolutionary optical setup, delivering a remarkable 40% wider field of view* and an incredibly comfortable eyebox for extended shooting sessions. With an 8x zoom capability, this scope ensures flawless optical performance across its entire range of adjustments. Designed for absolute precision, the K328i guarantees repeat accuracy and unique handling, providing maximum performance in any shooting scenario. This riflescope comes equipped with a DLR elevation turret optimized specifically for dynamic long-range competitions, prioritizing speed without compromising accuracy. Featuring windage adjustment with TWIST GUARD rotation protection and a patented parallax adjustment seamlessly integrated into the elevation turret, this scope offers unparalleled reliability and ease of use. The precisely illuminated SKMR4+ reticle in the first focal plane enhances target acquisition and ensures accuracy at any magnification level.

Product Highlights

  • Illuminated FFP SKMR4+ Reticle

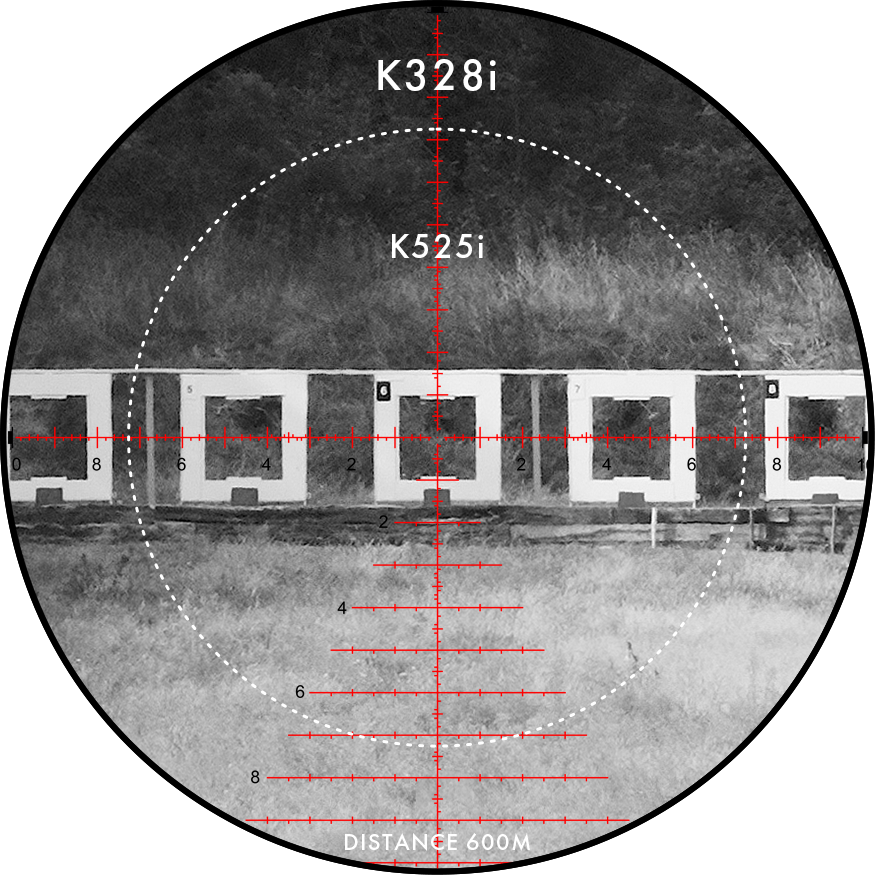

  • Revolutionary optical design with a 40 % wider field of view* and an exceptional eyebox
  • 8x zoom with perfect optical performance across the entire adjustment range

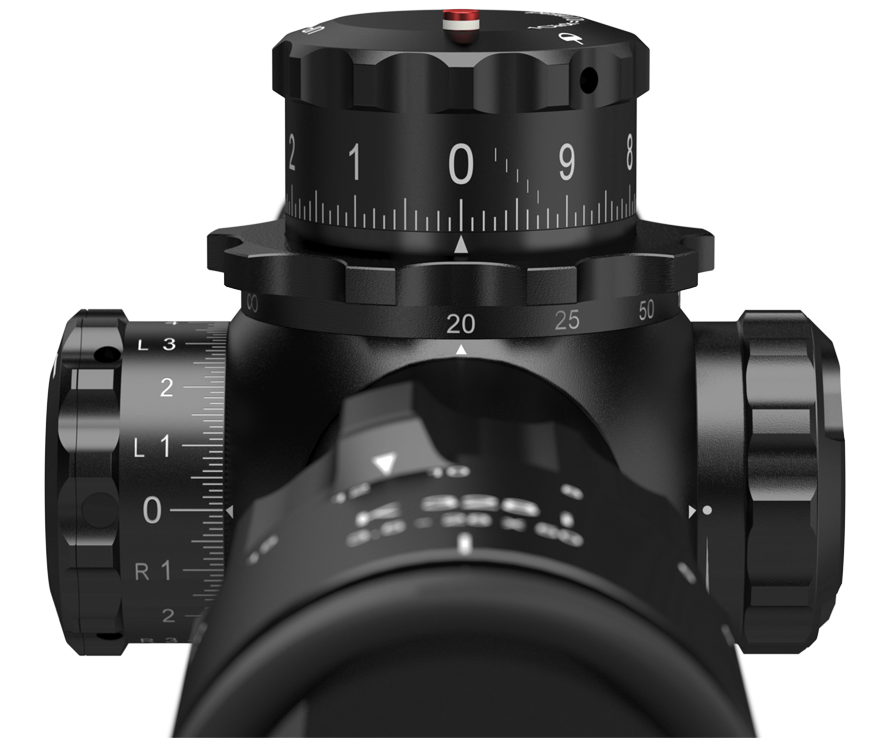

  • Windage adjustment on the left or right, patented parallax adjustment integrated in the elevation turret
  • 100 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks
  • Extra-large turret lettering for easy and fast reading
  • 36mm Tube
  • Zero Stop

Technical Data

  • Magnification: 3.5x – 28x
  • Objective Lense Diameter: 50mm
  • Exit Pupil: 1.8mm – 7.4mm
  • Eye relief: 3.62 in
  • Field of view: 42.9 – 5.4 ft/100 yds
  • Diopter compensation: +2 / -3 dpt
  • Twilight factor (DIN 58388): 13,2 – 37,4
  • Impact correction per click: .1 MRAD
  • Adjustment range (E/W): 122.4 / 46.8 in/100 yds | 34.0 / 13.0 MILS | 114.7 / 43.9 MOA
  • Parallax adjustment: 20 m till ∞
  • Tube diameter: 36mm
  • Length: 14.2 in
  • Weight: 36.7 oz
  • Focal plane: 1st focal plane
  • Illuminated: Yes
  • Max Elevation Adjustment: 34 MIL
  • Max Windage Adjustment: 13 MIL
  • Warranty: 10 years (2 years electronic)


Specification Fact Sheet        Kahles Optics Webpage         SKMR4+ Reticle

Additional information

Weight 5 lbs
Dimensions 20 × 8 × 8 in
