Kahles 5-25x56i DLR



SKU: N/A Category:


Shannon Kay from K&M Precision Rifle Training is proud to partner with Kahles Optics by designing the SKMR reticles. The SKMR reticles were designed to be uncomplicated, practical and visually expedient for both tactical operations and the most demanding long range competitors. With over 18 years of operational experience and with input from across the industry, Shannon designed the SKMR reticles to immediately fill a void in the market place. Backed by Kahles Optics long history and superior class quality, it is with little surprise that the scope/reticles have rapidly dominated the marketplace.

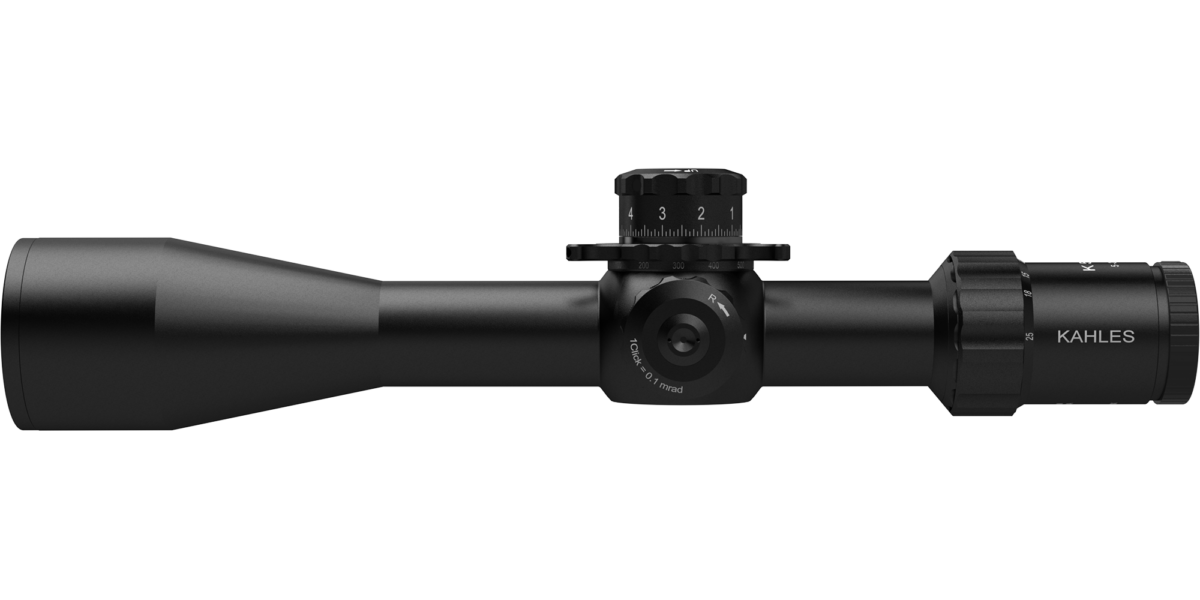

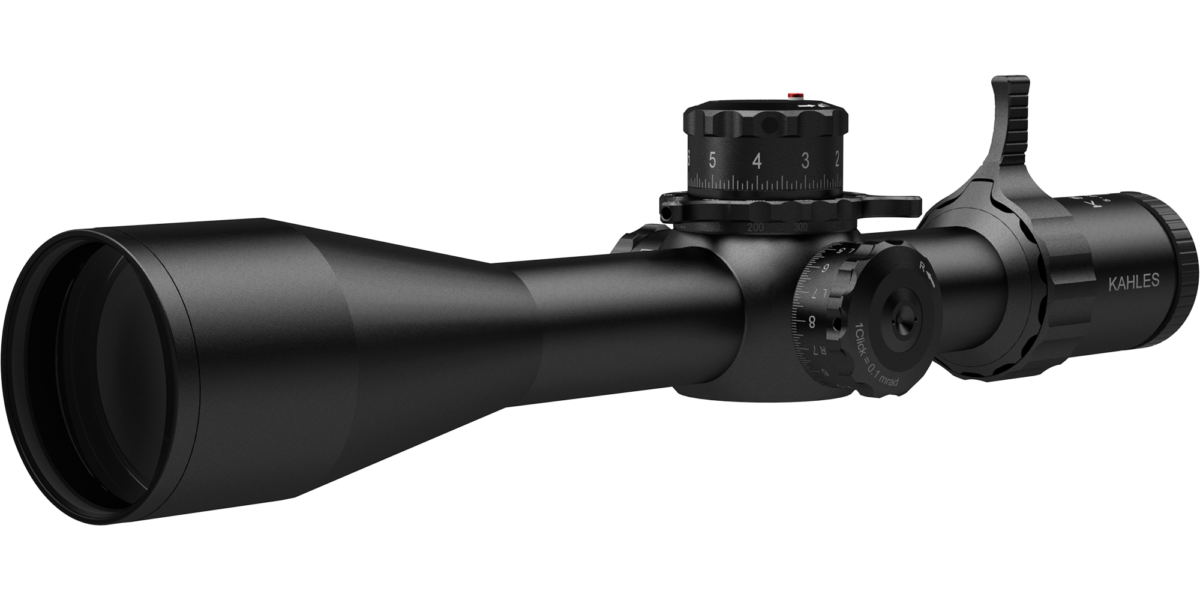

The K525i combines maximum optical performance and precision with unique handling and ergonomics. The DLR variant is optimized for the fast action nature of Dynamic Long Range competitions. It features extended field of view, easy to read clicks, extralong throw lever and parallax spinner.


Product Highlights

  • Maximum optical performance with extra wide field of view
  • 100 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks
  • Extra-large turret lettering for easy and fast reading
  • Optional left or right TWIST GUARD windage
  • Special equipment: extralong throw lever & parallax spinner for quick adjustments
  • Precise illuminated SKMR4 reticle in 1st focal plane

Technical Data

  • Magnification: 5 – 25
  • Objective lens diameter: 56 mm
  • Exit pupil: 9,5 – 2,3 mm
  • Eye relief: 95 mm
  • Field of view: 7.7 – 1.6 m/100 m
  • Diopter compensation: +2 / -3.5 dpt
  • Twilight factor (DIN 58388): 16.7 – 37.4
  • Impact correction per click: 0,1 MRAD
  • Adjustment range (E/W): 2,9/1,3
  • Parallax adjustment: 20-∞
  • Tube diameter: 34 mm
  • Length: 377 mm
  • Weight: 995 g
  • Focal plane: 1
  • Illuminated: Yes
  • Warranty: 10 years (2 years electronic)

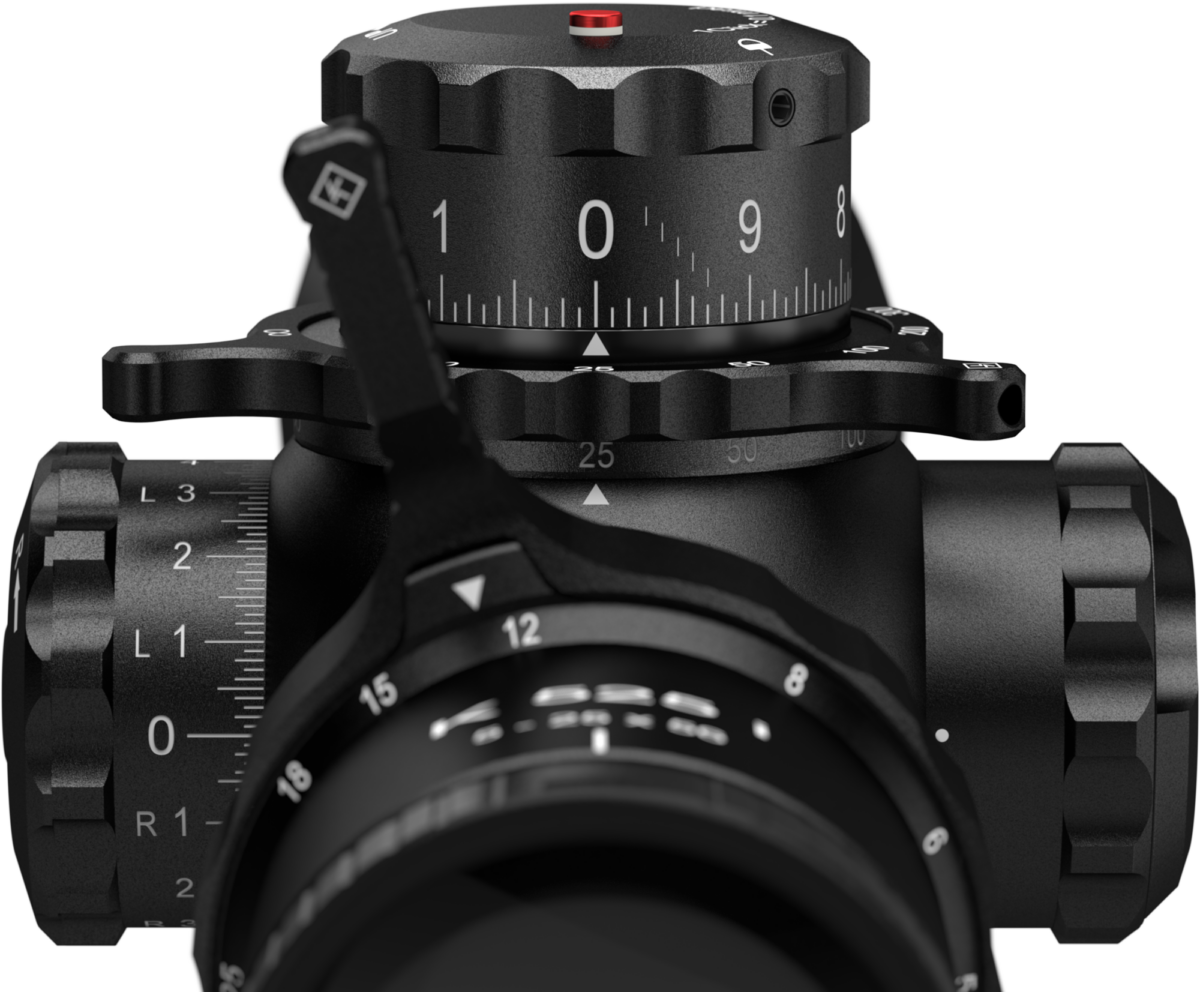

Ultra precision adjustments, constructed of hardened steel and machined to the most demanding tolerances, deliver a lifetime of wear resistance and 100% accuracy. The elevation adjustment has a second rotation indicator and the most refined zero stop and dial reset available.The K5-25i is the perfect example of innovation and quality derived from 116 years’ experience building the world’s finest rifle scopes. Designed for applications where the purest optical clarity can mean the difference between a hit or miss; this optic sets new standards with incredible resolution, contrast, and 95% light transmission. Specifically engineered for long range precision and built without compromise, the K5-25i delivers the highest level of performance ever achieved.


Specification Fact Sheet   Kahles Optics Webpage         SKMR4 Reticle       Reticle Comparison
