These magazines are designed with a unique Double Stack to Single Feed (DSSF) transition design for reduced overall height compared to the industry standard.

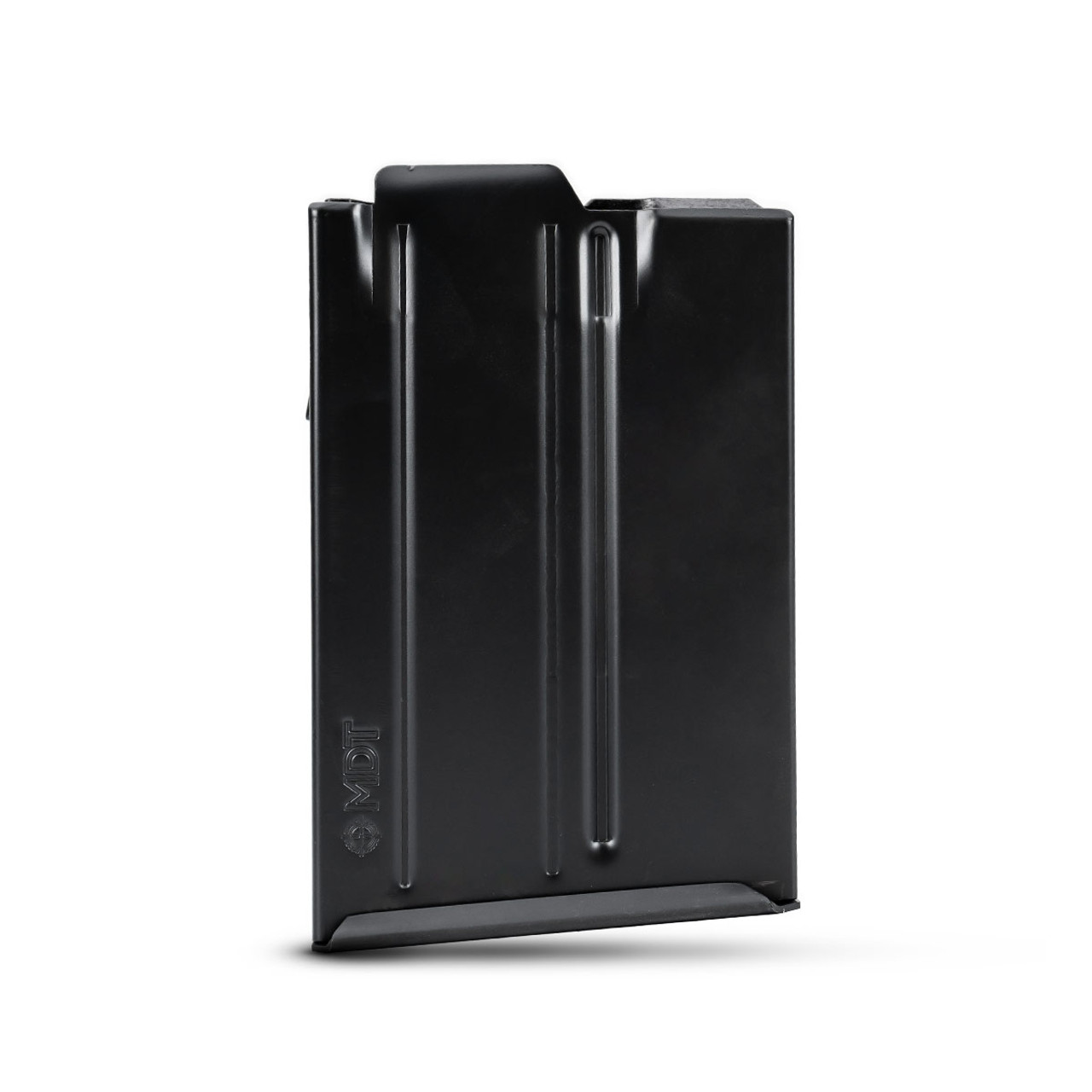

MDT AICS-pattern metal magazines are manufactured from high strength steel, nitrided, and finished inside and outside with Cerakote Elite for ultimate durability, corrosion resistance, and friction reduction.
- 3.055” Outside Length
- 2.870” max cartridge overall length (COAL) with binder plate
- 2.960” max cartridge overall length (COAL) without binder plate (see limitations below)
- 4.61” Rear Height
- 6mm Creedmoor
- 260 Rem
- 6.5 Creedmoor
- 7mm-08 Win
- 308/7.62×51 NATO
- 22 – 250 Rem (will work at a reduced capacity)

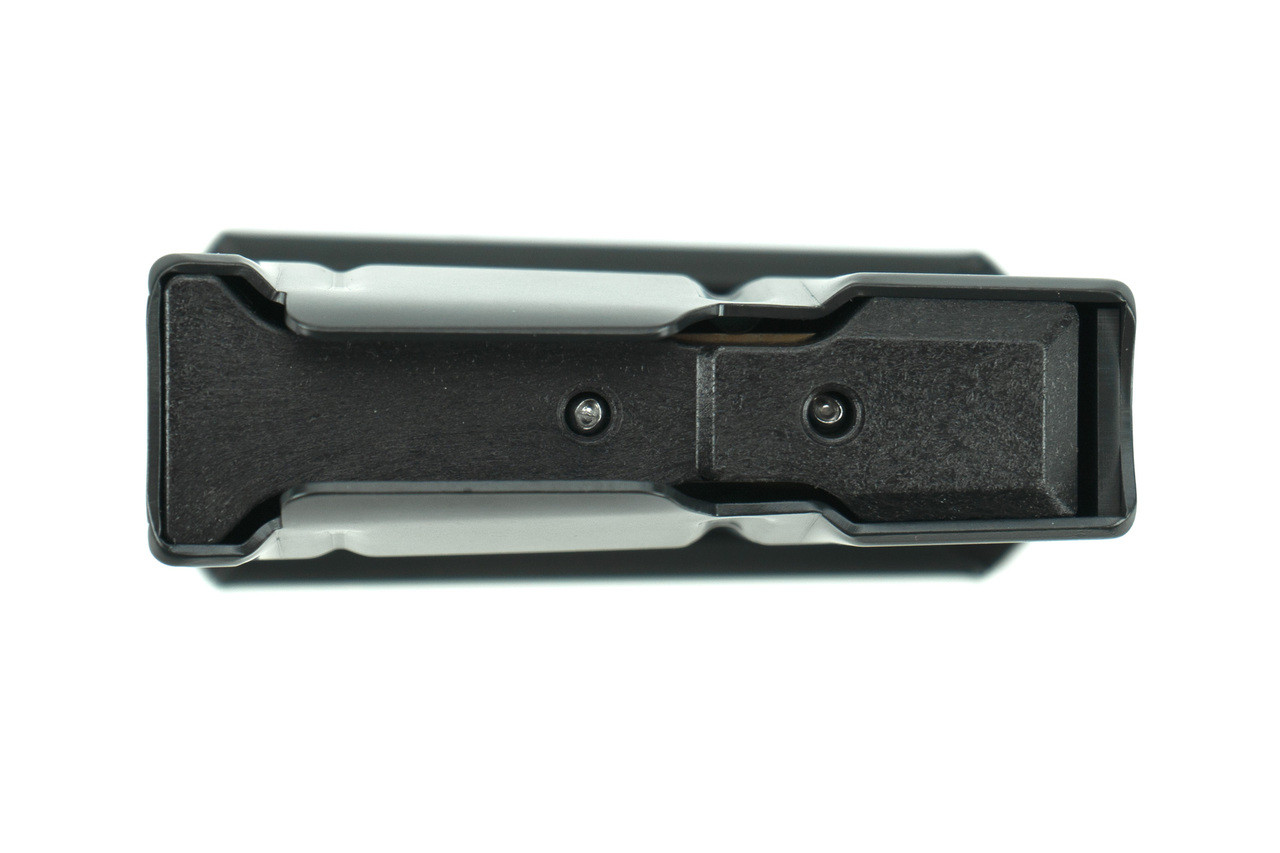

BINDER PLATE DETAILS
- These magazines are without front binder plates and allow a maximum cartridge overall length of 2.960”. These are compatible with all AICS-pattern bottom metal and chassis systems, but most common actions such as Remington 700 and Savage 10/11 will require modifications to the receiver (i.e. notching out the bottom of the feed ramp) to prevent the bullet tips from catching on the bottom of the feed ramp.
