Description

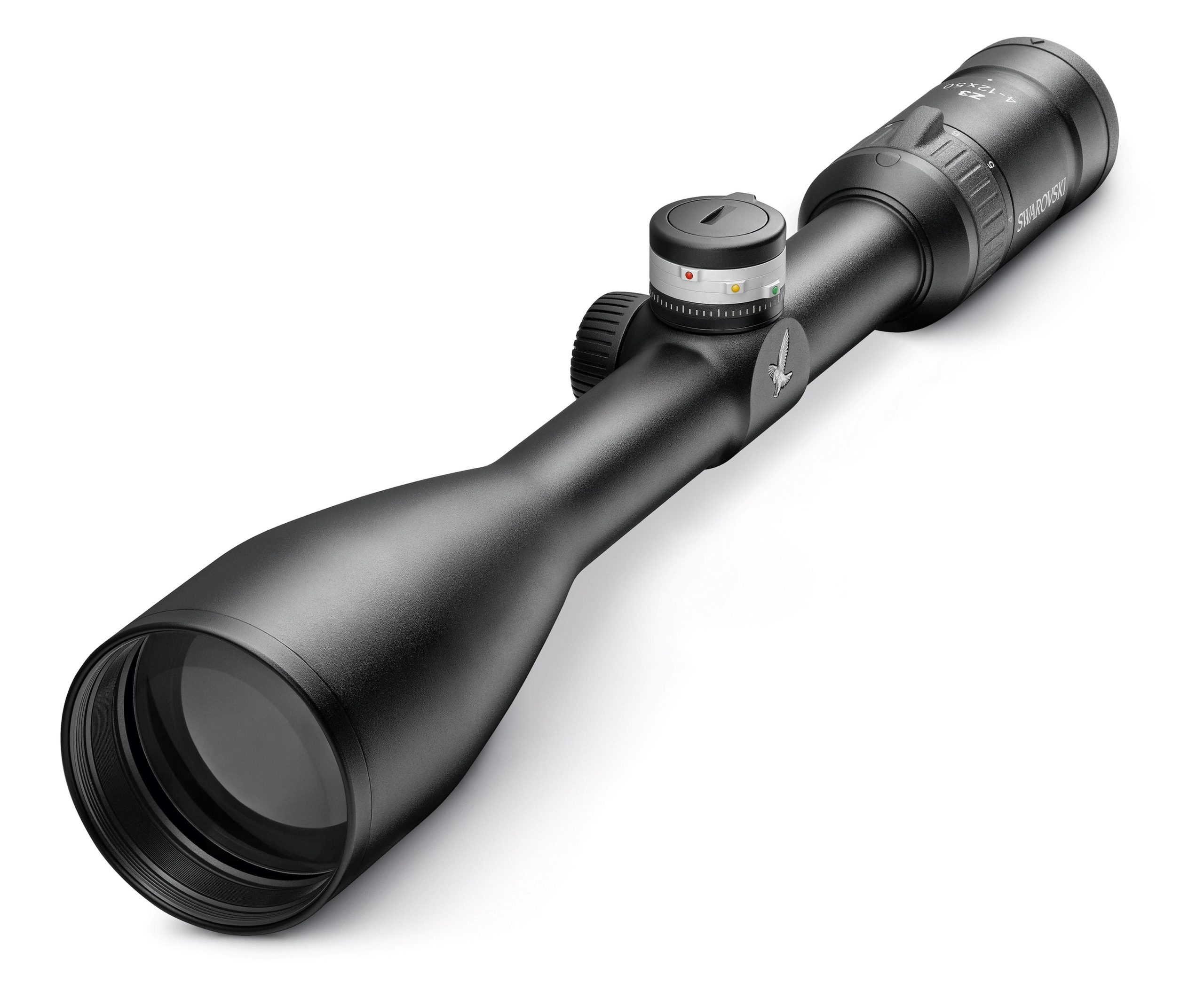

- 1 inch rifle scope with 3x zoom
- The newly designed slim construction allows it to be mounted close to the barrel and is suitable for all hunting firearms
- Improved anti-reflective lens coatings deliver the highest optical performance in all light conditions
- Large, rugged turrets with distinctive adjustable clicks for accurate adjustments
- The wide power ring allows quick adjustment of entire magnification range
- Wide range of adjustment for easy sighting in
- Large field of view
- Centered reticle in the second image plane
- Waterproof to 13 ft even with turret caps removed
- Rapid diopter adjustment
- Microstructure surface to prevent residual reflections inside the tube for bright, highcontrast images, even in intense light
- Light weight
- All aluminum outer parts are anodized to be scratch-resistant
TECHNICAL INFORMATION
Magnification 4x-12x
Objective lens diameter (mm) 50
Exit pupil diameter (mm) 12.5-4.2
Eye relief (in) 3.54
Field of view (ft/100 yds) 39-13.5 33-11.7 29.1-9.9
Field of view (degrees) 7.4-2.6 6.3-2.2 5.5-1.9
Impact point corr. per click (in/100 yds) 0.25 0.25 0.25*
Max elevation/windage adjustment
(in/100 yds) E: 58 / W:58 E: 50 / W:50 E: 43 / W:43
Dioptric compensation (dpt) -2.5 to +2.5 -2.5 to +2.5 -2.5 to +2.5
Transmission (%) >90 >90 >90
Parallax correction (yds) 109 109 109
Objective filter thread M 39×0.75 M 44×0.75 M 52×0.75
Length (in) 12.13 12.64 13.78
Weight (oz) 12.0 12.7 14.5

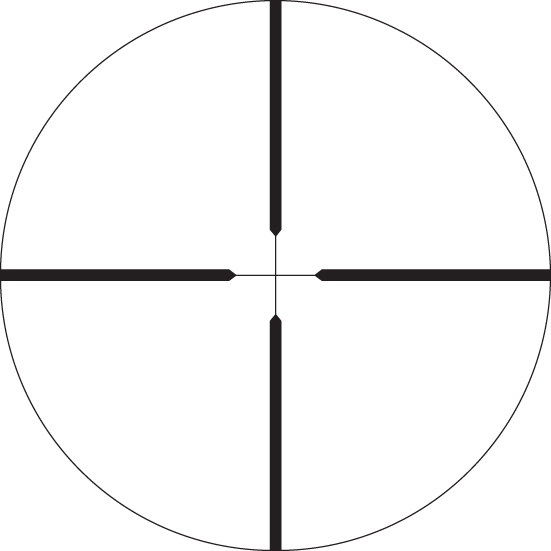

PLEX RETICLE
